This feature is currently available in trials. Contact your Customer Service Specialist regarding availability in SaaS customer instances.
The dashboard is broken into sections, or "widgets". Each widget contains specific information, a description of which is below. In some cases, a widget can be used to apply a filter to the dashboard - and those filters can be combined to drill in on specific information.
Information Display Widgets
1. Rule Application Count
The count of all the rule applications in the catalog according to any filters set. The default is to show all rule applications across the catalog.
2. Active Authors
A count of all the authors that have had a catalog activity in the last 90 days, according to any filters set. The default is to show all authors, across all applications, with activity in the catalog.
3. Revisions by Rule Application
The total number of revisions, grouped by rule application. You can select a rule application to filter the dashboard to view the details specific only to that rule application. Learn more: Filtering by Rule Application

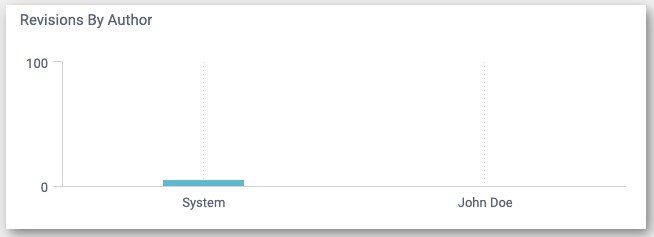

4. Revisions by Author
The total number of revisions is grouped by author. You can click on the data for a single author to filter the dashboard to view the details specific only to that author. Learn more: Filtering by Author

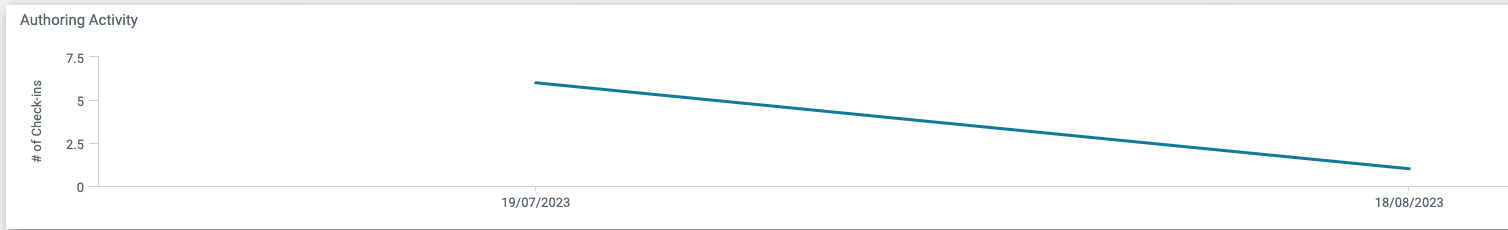

5. Authoring Activity
The check-in activity in the past 90 days. YOu can click on the graph to select a date and filter the dashboard to view details specific to only that date.
This feature is currently available in trials. Contact us regarding availability in SaaS customer instances.

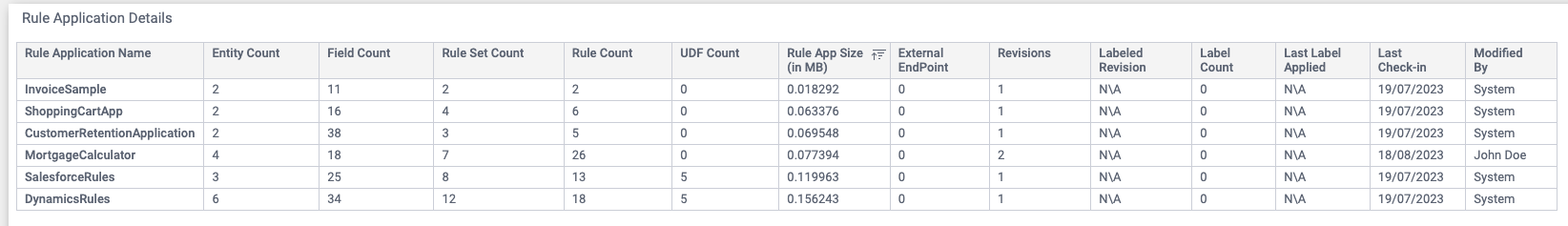

6. Rule Application Details
This table provides information about specific characteristics of rule applications, some of which had been previously available only by opening and viewing a rule application in irAuthor.
| Column Name | Description |
| Name | Rule application name. |
| Entity Count | Count of entities in a rule application. |
| Field Count | Count of fields across all entities for a rule application. |
| Rule Set Count | The number of rule sets in a rule application. This count includes any Decisions included in a rule application. |
| Rule Count | Count of rules across all rule sets in a rule application. |
| UDF Count | Count of user-defined functions (UDFs) in a rule application. |
| Rule App Size (MB) | The compiled size of the rule application, expressed in MB. |
| External Endpoint | The count of external endpoints included in the rule application. |
| Revision | The count of revisions of a rule application present in the catalog. Note: In some cases, this number will be different than the current revision number of a rule application. |
| Labeled Revision | The revision number of a currently-labeled revision. This is useful if a revision other than the most recent revision is labeled LIVE, for example. |
| Label Count | The count of labels assigned to the highest-numbered revision of a rule application. |
| Last Label Applied | The last label applied to a rule application. |
| Last Check-in (UTC) | The date (UTC) that the rule application was last checked in. |
| Modified by | The username of the person who last checked in or otherwise modified the rule application. |
