Configure Task View

  • Updated

Task view

The task view has a default appearance, but you can customize its components to make it suit the type of task and/or performer.

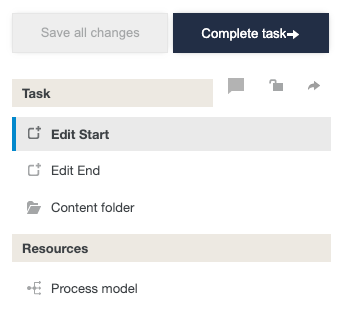

Task view with default settings:

Configure

Configure the Complete task button

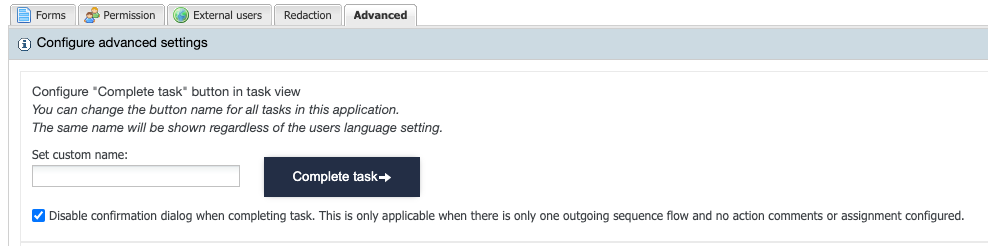

In the Application configuration settings under the Advanced tab, you can customize the name of the Complete task button and disable the confirmation dialogue the user will see.

Configuring

Configure the task view for different roles

The task view appearance is configured for each role, which means that one application can have multiple task view appearances.

To configure the Task view, open the Participant configuration of an existing application.

Participant configuration

In the participant configuration, you can configure the task view appearances.

You can also add new groups or users to a role.

You must have Full Control of a process application in order to see the settings shown in this article. For more information, see the article Process Permissions.

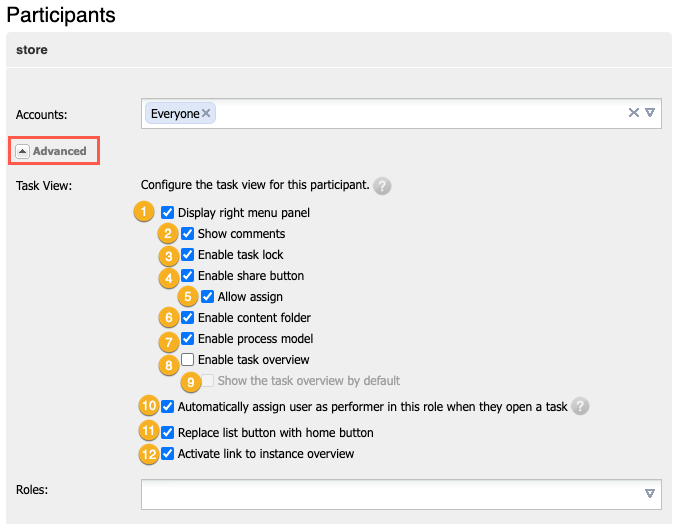

Expand the Advanced settings for one of your roles. Choose the options you would like to be shown in the Task View.

Choose Save when you are satisfied with your choices. You will need to complete this step for each performer.

Advanced drop-down.png

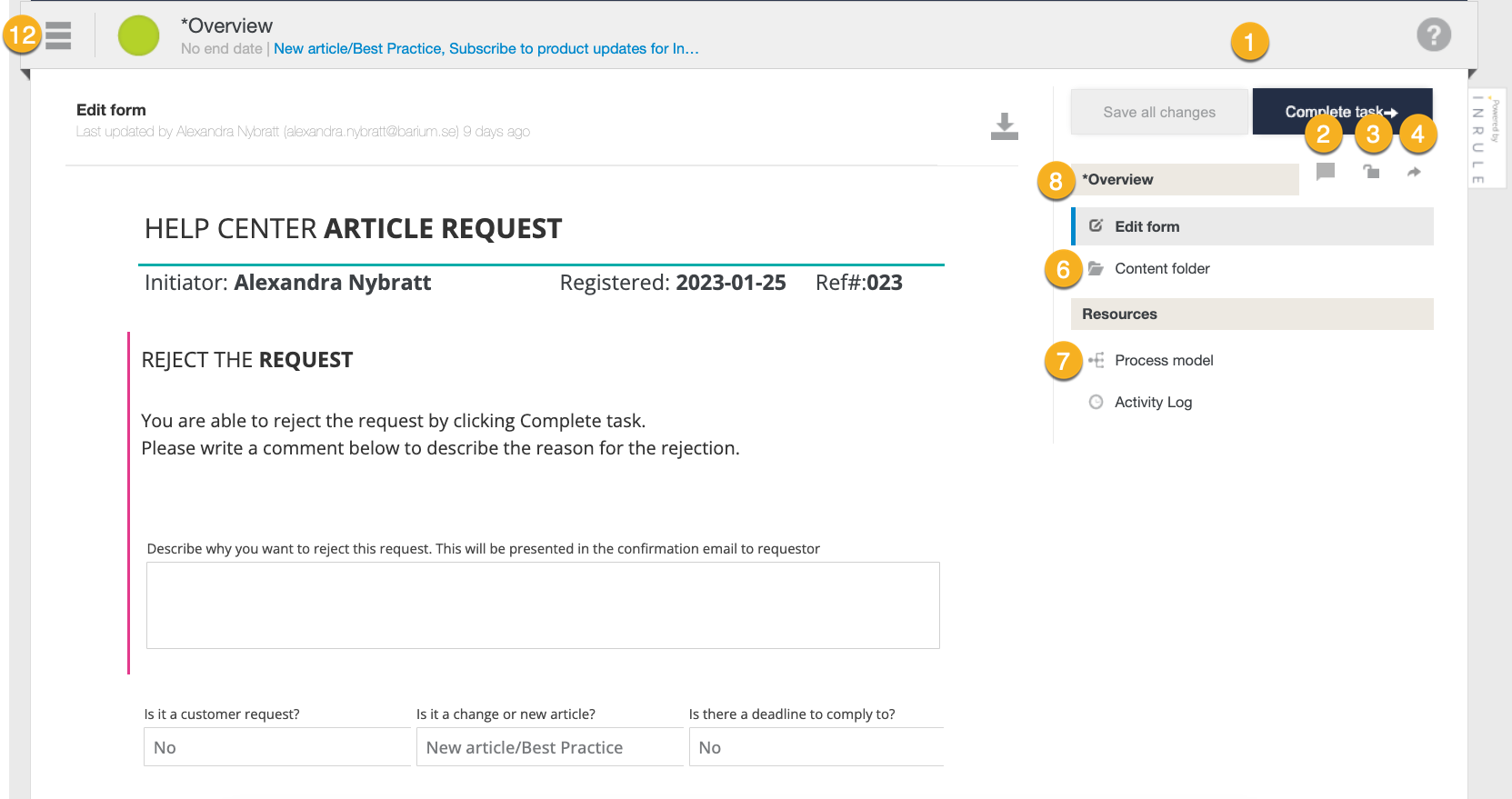

The below images show how these options will appear when enabled. If the box is unchecked, the option will not appear.

Configuring Task View.png

Configuring Task View_2.png

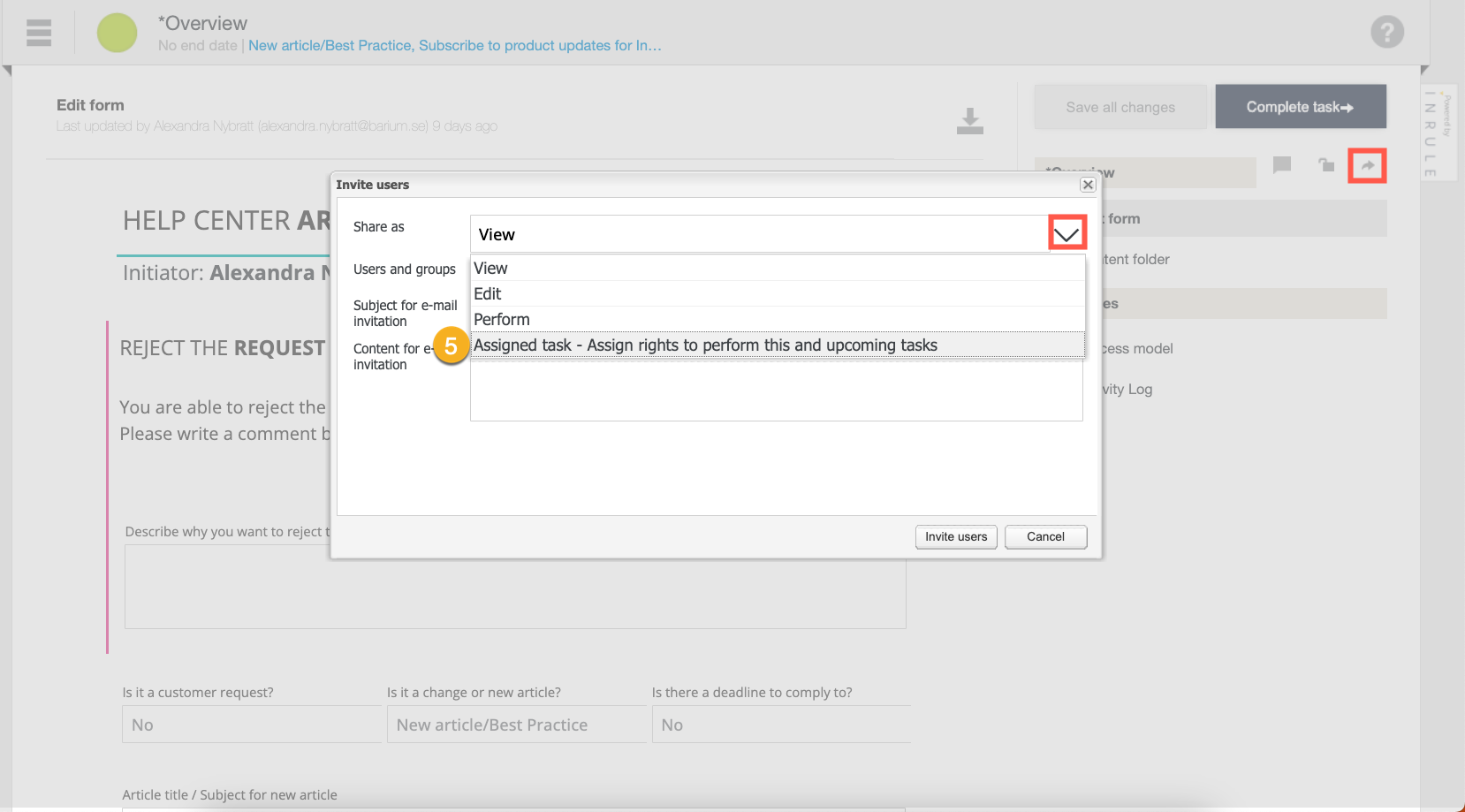

Assign Task.png

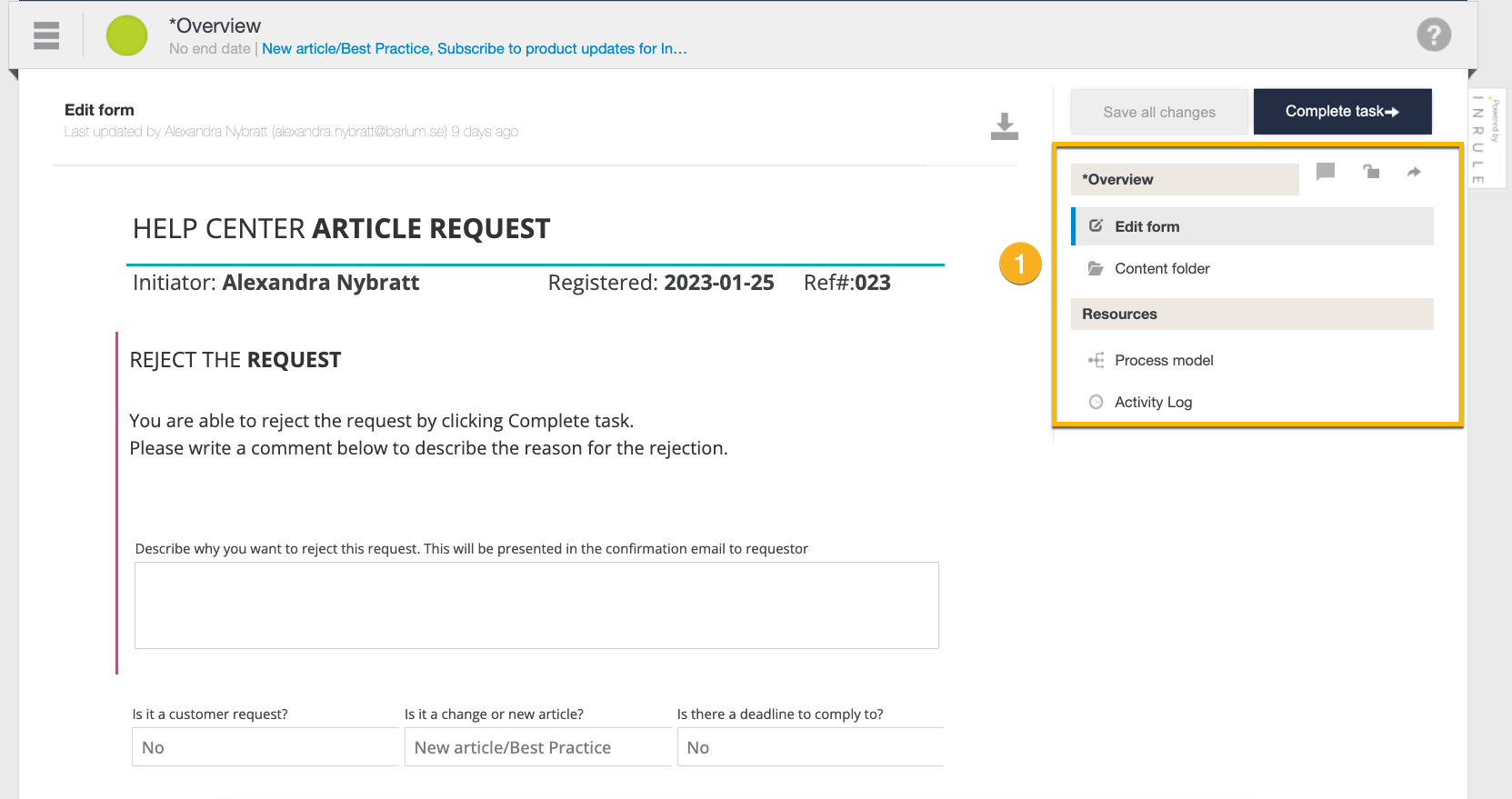

1. Display the right menu panel

If this option is not selected, the whole right panel is hidden. This could be useful for users since it reduces a user's options and puts the focus on the task.

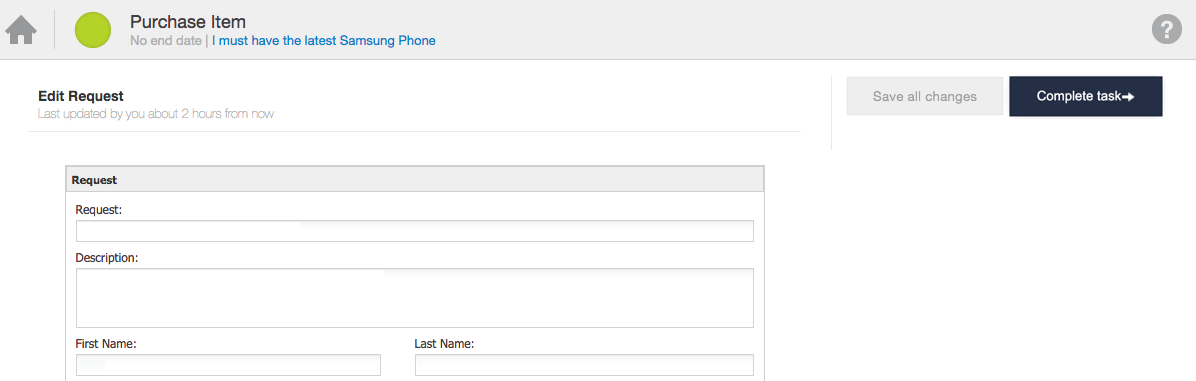

The task view with a hidden right panel:


2. Comments

This gives performers access to all comments connected to the task or the instance.

3. Task lock

Allows users to lock a task they are performing so no other users can make changes to it. Once a task has been locked by a user, only the user that locked it or an application administrator can unlock the task.

4. Share button

Using this button, task performers can choose to share tasks with other users. When a user shares the task, they set the permission level for the user receiving the task as View, Edit, or Perform. Shared tasks are visible in the user's inbox.

5. Assign

Allowing this option gives users the ability to reassign their current and future tasks for an instance to someone else. The Assign task feature is useful for those processes where performers should be able to choose who should perform the role instead.

Users with Full Control rights on the process application will always have permission to assign a task if the share feature is enabled.

6. Content folder

When this option is active, there is a link to the Content folder, containing forms and documents, in the menu.

7. Enable process model

This allows users to go from the task view to the process model view.

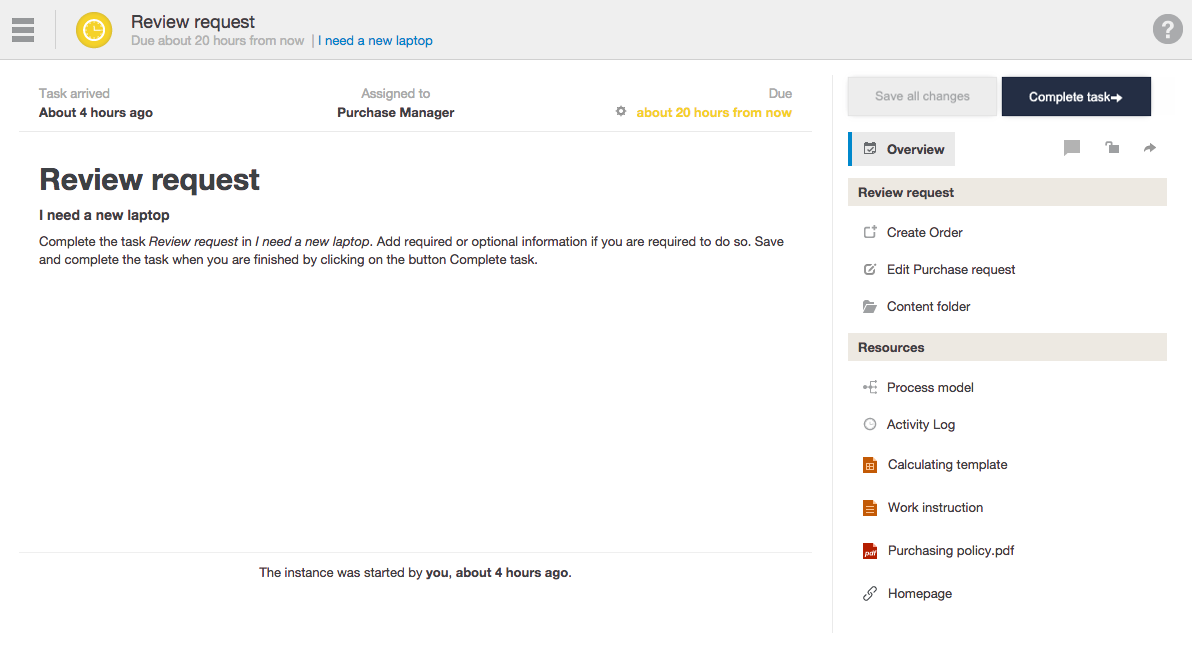

8. Enable task overview

When enabled, an area called Overview will be the first page that appears in the task view. It contains information regarding the task, as well as text annotations and selected form field data.

9. Show the task overview by default

This setting decides what is shown when opening the task. When this option is active, the task overview is the landing page for the Task View. If this is not active, the form template will be shown.

As long as you have enabled the overview, it will always be available from the right panel, even if you choose not to show it by default.

10. Automatically assign user as performer in this role when they open a task

When a group is assigned to a task and there are multiple users with the same responsibilities, selecting this option assigns the task to the user who opens it, preventing multiple users from working on the same task.

11. Replace list button with home button

This replaces the List button icon with a Home button icon. If enabled, users will see a home button they can use to return to the space start page. This is useful for seldom users.

12. Activate link to instance overview

When this option is active the name of the instance becomes a link to the instance overview for the specific instance.

Configuring the order of forms in the Task View

If you have a task with multiple forms associated with it, they will appear in the order in which they were dragged onto the task when modeling the process. In the example below, the form named End was dragged onto the canvas before Start, which is why it appears first. The forms do not appear in alphabetical order.

Change the order of the forms in the Task View

To change the order of the forms, you must delete them from the task, add them back to the task in the correct order, and redeploy the process. In the example below, the form named End was deleted from the process and dragged back into the process, making it the second form. After redeploying the process, the forms now appear in the desired order.

Tip for modeling multiple forms on a single task

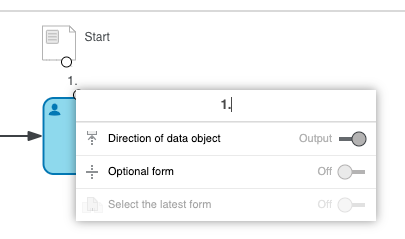

It helps to rename the association as you are modeling. You can name the association the number of the order you are dragging it into the form so that when modeling, you can remember the order they will appear on the form.

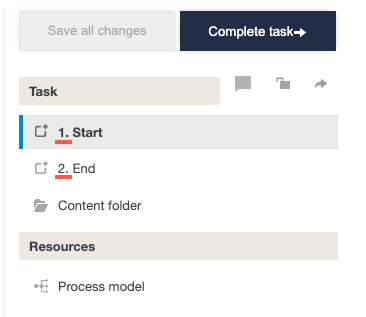

Any text written in the association field will be written before the form name in the task view and replace the default text that says "Create" or "Edit".
